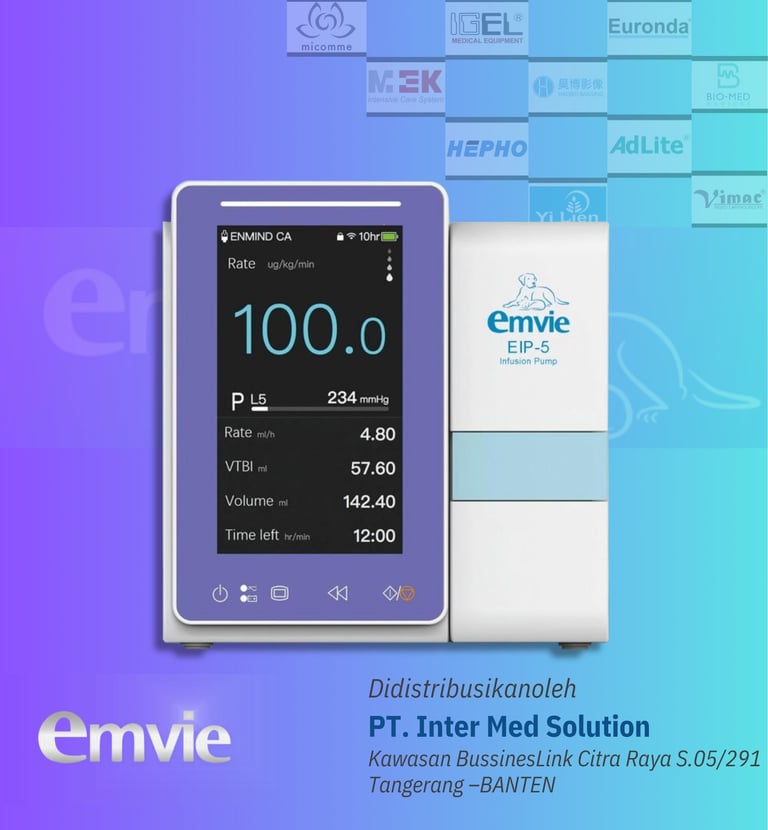

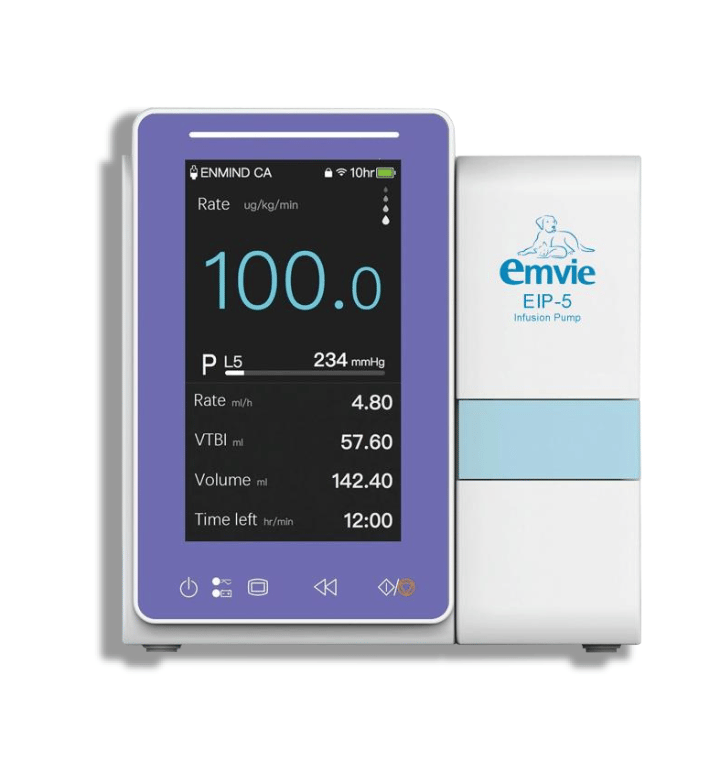

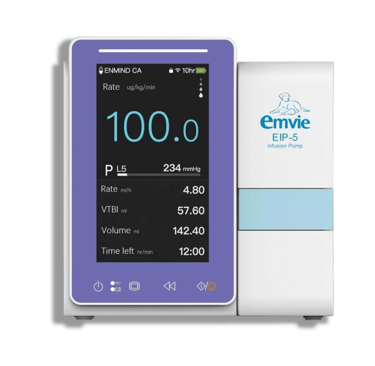

Infusion Pump EIP-5 Vet

EIP- 5 VET Infusion Pump for Veterinary Use

• Using any standard IV sets ana storing up to 200 editable brands • Resetting rate, volume, air level, ocsluslbn level without stop infusion • 5 infusion modes + Micro mode control • Infusion rates range from 0.1 ml/h to 2000ml/h • Optional WIFI connection to central monitor • Last therapy for rapid infusion start • 10 hours battery back-up • IP44 waterproof

Special Features

Titration → Change flow rate without stopping infusion Reset Total Volume → Reset total infused volume to zero without stopping infusion Reset Occlusion level → Reset occlusion alarm level without stoping infusion Reset Air Bubble level → Reset air bubble alarm level without stoping infusion Last Therapy → Last Therapies can be stored and used for rapid infusion Drug Library → No Less than 2000 Drug DERS → Drug error reduction system Anti-Bolus → Automatic drop line pressure to reduce bolus impact after occlusion Purge → Remove the air bubble Screen Lock → Avoid mis operation Standby Mode → Standby time adjustable Micro Mode → Limit the max infusion rate to double ensure patient safety DPS → Real-time pressure display in graphically and numerically Bubble Detector → Adjustable Single bubble and accumulated bubble in 15min

Basic Parameter

Case Material

PBT+PC

Screen

4.3 inch LCD color touch screen

Infusion Mode

ml/h (include Rate mode, Time mode), Body weight, Drip, Sequence, Drug Library, Micro

Accuracy

±5o/o

Flow Rate Range

0.1-2000ml/h (min. increment 0.01 ml/h)

VTBI

0-9999. 99 m I

KVO

0-5ml/h adjustable (min. increment 0.01 ml/h)

Bolus Rate

1-2000ml/h (automatic & manual bolus available)

Occlusion Level

5 levels selectable (50mmHg - 900mmHg)

Interface

DB 15 muti-functional interface

Wireless

Wifi ( optional)

Alarm Type

VTBI Infused, Occlusion, Pressure drop, Battery empty, KVO finished, Standby time end, Door Open, Single air bubble, Accumulated air bubble, Abnormal drip rate, Empty drip chamber, VTBI near end, Battery near empty, Reminder alarm, No power supply, Drop sensor connection, System error, etc

Brightness

Adjustable

Alarm Volume

Adjustable

History Record

More than 5000 entries

AC Power

100V-240V, 50/60Hz

External DC Power

10-16V

Battery

Lithium Polymer battery 2600mAh*2, more than 10 hours operating time at 25ml/h

Classification

Class I, CF

Standard

CE; EN 1789:2014 (Ambulance)

Waterproof

IP44

Dimension

131.5(L)*90(W)*138(H) mm

Weight

Approx. 1.5kg (Pole clamp included)

Didistribusikan Oleh PT. Inter Med Solution Kawasan Bussines Link Citra Raya S.05/291 Tangerang -BANTEN
